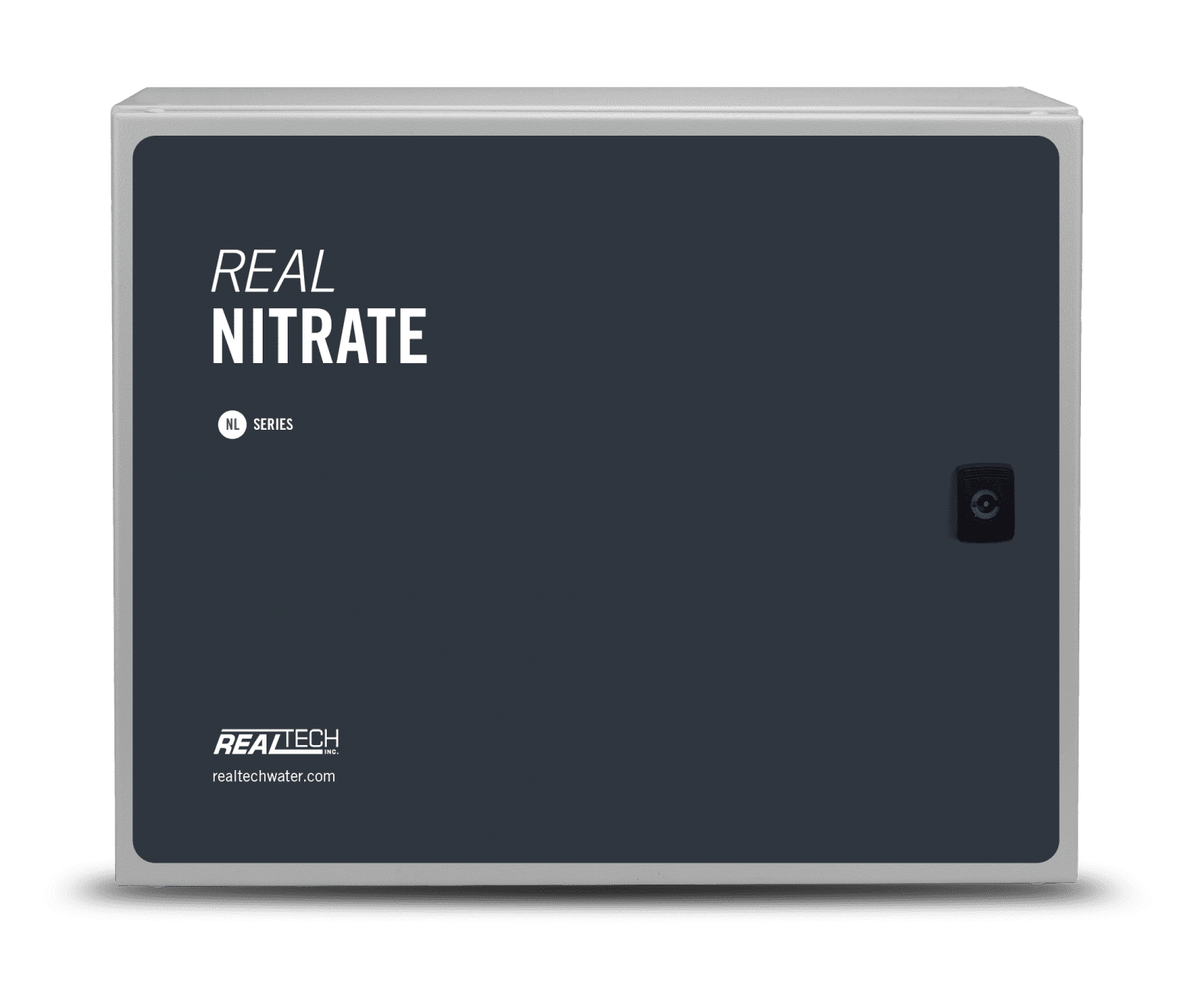

加拿大Real Tech NITRATE/NITRITE SENSOR 硝酸鹽/亞硝酸鹽傳感器

加拿大Real Tech NITRATE/NITRITE SENSOR 硝酸鹽/亞硝酸鹽傳感器

Parameter(s): Nitrate (NO3), Nitrite (NO2) 硝酸鹽/亞硝酸鹽傳感器

高硝酸鹽/亞硝酸鹽傳感器

Real Tech的旁路高硝酸鹽/亞硝酸鹽傳感器可對水或廢水中的高硝酸鹽（NO3）和亞硝酸鹽（NO2）水平進行經濟實惠的實時測量。高硝酸鹽/亞硝酸鹽傳感器使用紫外線LED在多個波長的光下提供卓越的測量性能。HNL系列旨在滿足許多監測應用的需求，提供多種流動池設計和傳感器路徑長度選擇，以滿足所需的測量范圍。



功能和優點

可負擔的實時硝酸鹽（NO3）和亞硝酸鹽（NO2）監測

非常適合監測高水平的硝酸鹽和亞硝酸鹽

多波長傳感器采用紫外線LED技術，實現卓越的測量性能

廢水至高純度測量范圍

旁路式傳感器，可選擇多種流量傳感器，以滿足應用需求

操作人員友好，低維護紫外線LED設計

無試劑光學測量

安裝和操作簡單



CHARACTERISTICTECHNICAL DATA
Path Lengths0.5, 1, 2, 4, 10 mm (1000 series)
1, 2, 4, 8 mm (2000 series)
25, 50, 100, 150 mm (4000 series)
ParametersNitrate (NO3) and nitrite (NO2)
RangeDepends on model selected. Refer to range chart on next tab.
Accuracy± 0.5% full scale
Unitsmg/L, ppm
Sampling Time30 seconds
CalibrationFactory calibrated. Field adjustment of calibration is possible.
CleaningIn-situ cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional.
Self-DiagnosticDetection and diagnosis of internal system fault
AlarmsDry contact terminals allow operator configurable alarms for:
high and low set points, low lamp output, leak detect, system fault, etc.
Humidity ControlHumidity sensor with large regeneratable desiccant system
WavelengthsUV and visible light wavelengths
Light SourceLED
Flow Rate500 – 1000 mL/min (1000 series)
300 – 1000 mL/min (2000 and 4000 series)
Pressure Rating85 PSI maximum (1000 series)
20 PSI maximum (2000 and 4000 series)
Fluid Connections3/8″ OD tube push-in fittings (1000 series)
1/4″ OD tube push-in fittings (2000 and 4000 series)
Wetted MaterialsKynar, FEP, Quartz, SS316L, Viton (1000 series)
Kynar, Polyethylene, Quartz, SS 316L, Viton (2000 and 4000 series)
Electrical/Comm.From controller
Ambient Temp.0 to 45°C (32 to 113°F)
Water Temp.0 to 90°C (32 to 194°F) at 21°C (69.8°F) Ambient temperature
EnclosureNEMA 4X, wall mountable
Weight22 lb (1000 and 2000 series)
24 lb (4000 series)
Dimensions17″H x 14.25″W x 7.5″D (1000 and 2000 series)
15.82”H x 13.82”W x 9.00”D (4000 series)
