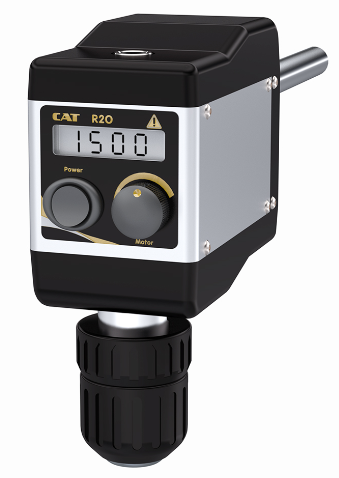

R20D-PC無刷動力組
我們的無刷動力組以輕量化纖薄機身實現高扭矩表現尤為出眾。該系列特別適合在空間受限的工況下，處理高粘度（可達50000mPas）中容量（最大60升）的應用需求。
核心優勢：
? 免維護電機
? 緊湊輕量化設計
? 中空軸結構
? 過載過熱雙重保護
? PC端控制接口
? 快速釋放夾頭
? 低電壓供電系統
? 可持續不間斷運行
| Name | Value |
|---|---|
| Speed range [1/min] | 50 – 2000 |
| Digital display type | LCD |
| RPM display | Yes |
| Timer display | – |
| Timer function | – |
| Absolut torque display | – |
| Relative torque display | – |
| Torque, max. [Ncm] | 20 |
| Stirring quantity, max. (H2O) [l] | 35 |
| Viscosity, max. [mPas] | 10000 |
| Chuck range [mm] | 1 – 10.5 |
| Chuck type | keyless |
| Hollow Shaft | Yes |
| Power supply [V] | 24VDC 60W |
| External power supply | Yes |
| PC interface | RS232 |
| Analogue input | – |
| Analogue output | – |
| Weight [kg] | 1.3 |
| Width [mm] | 68 |
| Height [mm] | 165 |
| Depth [mm] | 130 |
| Protection class according to DIN EN 60529 | IP42 |
| Overheat protection | Yes |
| Overload protection | Yes |
| Motor type | BLDC |
| Shaft rotation | CCW |
| Operation mode | Long-time duty |
| Certification | CE |
