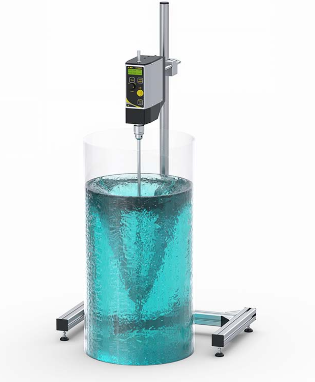

R100C頂置式攪拌器
R100系列是我們功能最強大的頂置式攪拌器，非常適合高粘度介質及最大200升體積的重載應用。
特點：
背光顯示屏
空心軸設計
過載及過熱保護
自動關機定時器
可編程扭矩限制
可編程電機轉速限制
支持計算機控制的RS232接口
| Name | Value |
|---|---|
| Speed range [1/min] | 40 – 2000 |
| Digital display type | LCD |
| RPM display | Yes |
| Timer display | Yes |
| Timer function | Yes |
| Absolut torque display | Yes |
| Relative torque display | Yes |
| Torque, max. [Ncm] | 150 |
| Stirring quantity, max. (H2O) [l] | 200 |
| Viscosity, max. [mPas] | 60.000 |
| Chuck range [mm] | 1 – 10.5 |
| Chuck type | keyed |
| Hollow Shaft | Yes |
| Power supply [V] | 230VAC 50Hz, 115VAC 60Hz |
| External power supply | Yes |
| PC interface | RS 232 |
| Analogue input | TTL |
| Analogue output | TTL |
| Weight [kg] | 4.7 |
| Width [mm] | 78 |
| Height [mm] | 230 |
| Depth [mm] | 200 |
| Protection class according to DIN EN 60529 | IP42 |
| Overheat protection | Yes |
| Overload protection | Yes |
| Motor type | DC |
| Shaft rotation | CCW |
| Operation mode | Short-term operation |
| Certification | CE |
