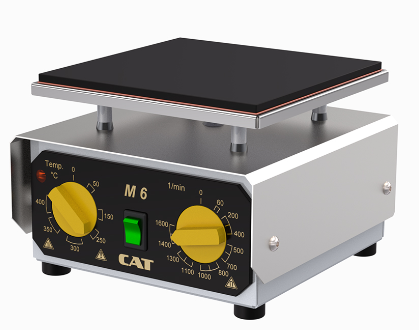

專為日常實驗設計的熱板攪拌器。采用封閉式結構設計，在保證大面積加熱板的同時占地面積小巧，配備免維護無刷電機及防腐蝕面板。
防腐蝕不銹鋼面板
占地面積小
免維護電機
轉速與溫度連續可調
| Name | Value |
|---|---|
| Speed range [1/min] | 80 – 1600 |
| Temperature range [°C] | RT (+5) – 400 |
| Heating power [W] | 600 |
| Heater plate form | square |
| Heater plate type | Ceran? |
| Suitable for round-bottom flasks | – |
| Suitable for oil or sand bath | – |
| Heater plate dimentions [mm] | 135 x 135 |
| Digital display type | – |
| RPM display | – |
| Temperature display | – |
| Timer display | – |
| Timer function | – |
| Ramp function | – |
| Stirring quantity, max. (H2O) [l] | 10 |
| Temperature control accuracy [°C] (internal control) | ±5 |
| Temperature control accuracy [°C] (external probe) | – |
| External probe connectors | – |
| Programmable safety temperature | – |
| Interface | – |
| Power supply [V] | 230VAC 50Hz 115VAC 60Hz |
| Weight [kg] | 2.4 |
| Width [mm] | 155 |
| Height [mm] | 110 |
| Depth [mm] | 160 |
| Protection class according to DIN EN 60529 | IP32 |
| Motor type | DC |
| Motor rotation | CCW |
| Operation mode | Long-term duty |
| Certification | CE |
