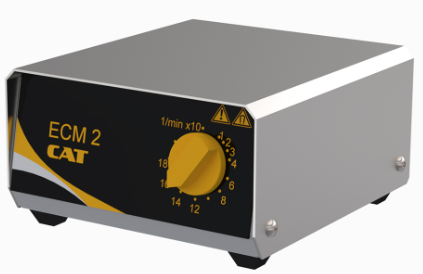

ECM2磁力攪拌器
緊湊型磁力攪拌器，輕松應對1升以內的攪拌任務。
免維護電機
軟啟動功能
無級調速
超小占地面積
防腐蝕不銹鋼臺面
| Name | Value |
|---|---|
| Speed range [1/min] | 10 – 20 |
| Temperature range [°C] | – |
| Heating power [W] | – |
| Heater plate form | – |
| Heater plate type | – |
| Suitable for round-bottom flasks | – |
| Suitable for oil or sand bath | – |
| Heater plate dimentions [mm] | 100 x 100 |
| Digital display type | – |
| RPM display | – |
| Temperature display | – |
| Timer display | – |
| Timer function | – |
| Ramp function | – |
| Stirring quantity, max. (H2O) [l] | 1 |
| Temperature control accuracy [°C] (internal control) | – |
| Temperature control accuracy [°C] (external probe) | – |
| External probe connectors | – |
| Programmable safety temperature | – |
| Interface | – |
| Power supply [V] | 230VAC 50Hz 115VAC 60Hz |
| Weight [kg] | 0.7 |
| Width [mm] | 100 |
| Height [mm] | 58 |
| Depth [mm] | 115 |
| Protection class according to DIN EN 60529 | IP32 |
| Motor type | DC |
| Motor rotation | CCW |
| Operation mode | Long-term duty |
| Certification | CE |
