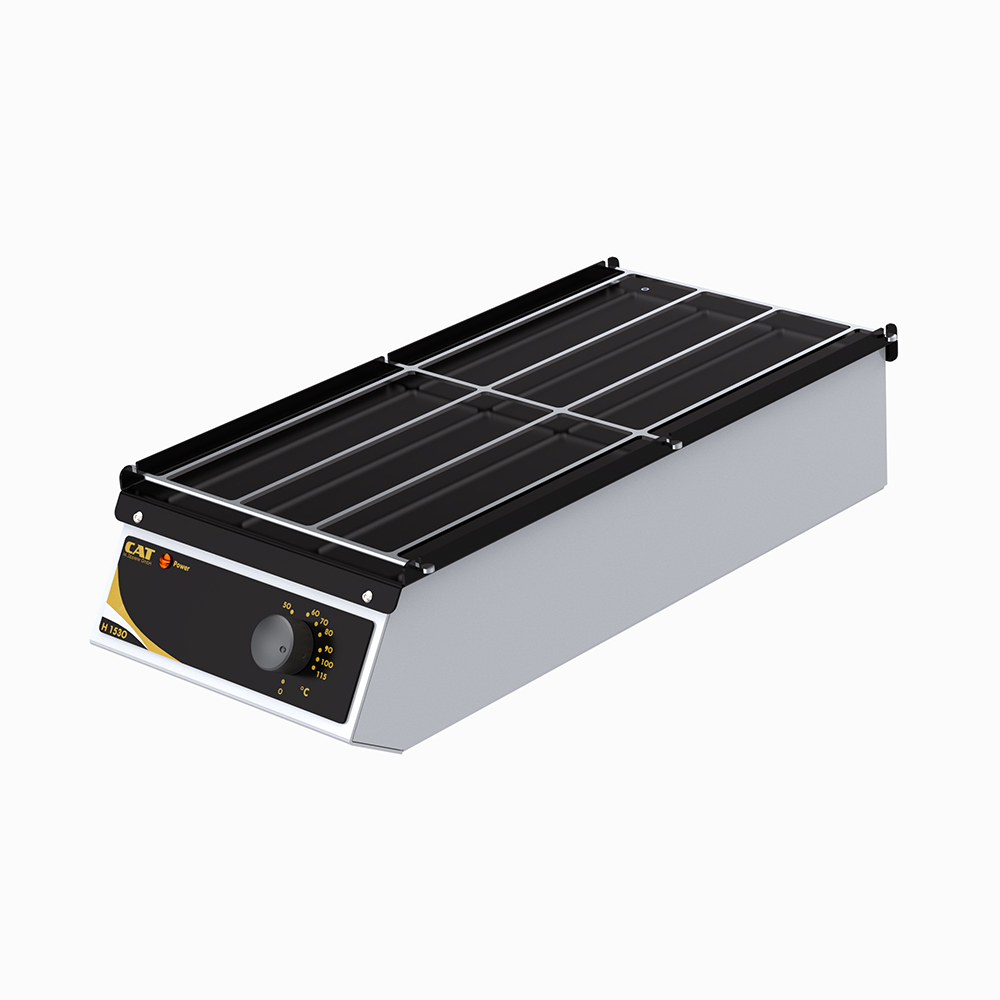

該載玻片干燥工作臺用于干燥標本載玻片。它是為工業企業、大學和藥房的化學和生物實驗室而設計的。溫度由內置的能量調節器控制，最高可達100°c。外殼和頂部涂有鋁。它最多可容納48張載玻片，并具有在不同方向干燥載玻片的設施。它們可以在有或沒有支撐桿的情況下以多種方式布置在工作臺上。
- 最多可裝載48張載玻片
| Name | Value |
|---|---|
| Temperature range [°C] | 30 – 115 |
| Heating power [W] | 150 |
| Heating plate form | rectangular |
| Heating plate material | Eloxal |
| Suitable for oil or sand bath | – |
| Heating plate dimentions [mm] | 182 x 360 |
| Digital display type | – |
| Temperature display | – |
| Timer display | – |
| Timer function | – |
| Ramp function | – |
| Temperature control accuracy [°C] (internal control) | ± 4 |
| Temperature control accuracy [°C] (external probe) | – |
| Interface | – |
| Programmable safety temperature | – |
| Interface | – |
| Power supply [V] | 230VAC 50Hz |
| Weight [kg] | 1.3 |
| Width [mm] | 186 |
| Height [mm] | 105 |
| Depth [mm] | 395 |
| Protection class according to DIN EN 60529 | IP32 |
| Operation mode | Long-term duty |
| Certification | CE |
