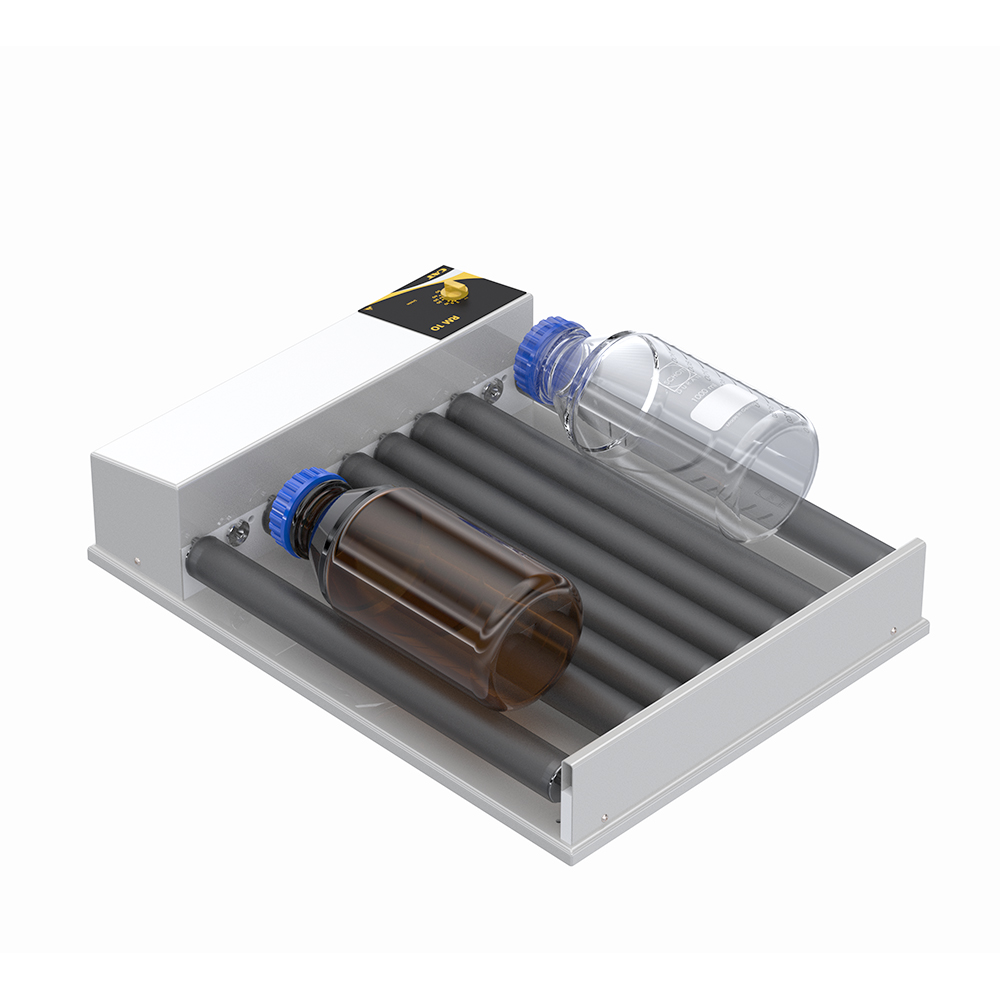

RM10滾軸混合儀
配備10根可獨立拆卸滾軸，同步旋轉的PVC滾軸形成均勻擺動平臺，特別適用于對裝載血液或細胞懸液等樣品的圓柱形容器進行同步溫和均質混合。每根滾軸均可單獨拆卸，以便容納更大體積的圓柱形試管或瓶子（最大5升），轉速可無級調節。
特點：
可拆卸滾軸
寬范圍調速
低壓電源供電
| Name | Value |
|---|---|
| Speed range [1/min] | 4-30 oder 10-70 |
| Length of rolls [mm] | 330 |
| Number of rolls | 10 |
| Removable rolls | Yes |
| Centric rolls option | optional |
| Material of rolls | PVC |
| Tilt angle [°] | 3 |
| Load, max. [kg] | 5 |
| Diameter of test tubes min. [mm] | 10 |
| Diameter of test tubes max. [mm] | 300 |
| Power supply [V] | 24 VDC |
| Weight [kg] | 6.5 |
| Width [mm] | 360 |
| Height [mm] | 110 |
| Depth [mm] | 480 |
| Protection class according to DIN EN 60529 | IP32 |
| Overheat protection | Yes |
| Overload protection | Yes |
| Motor type | BLDC |
| Rotation | CCW |
| Operation mode | Long-term duty |
| Certification | CE |
